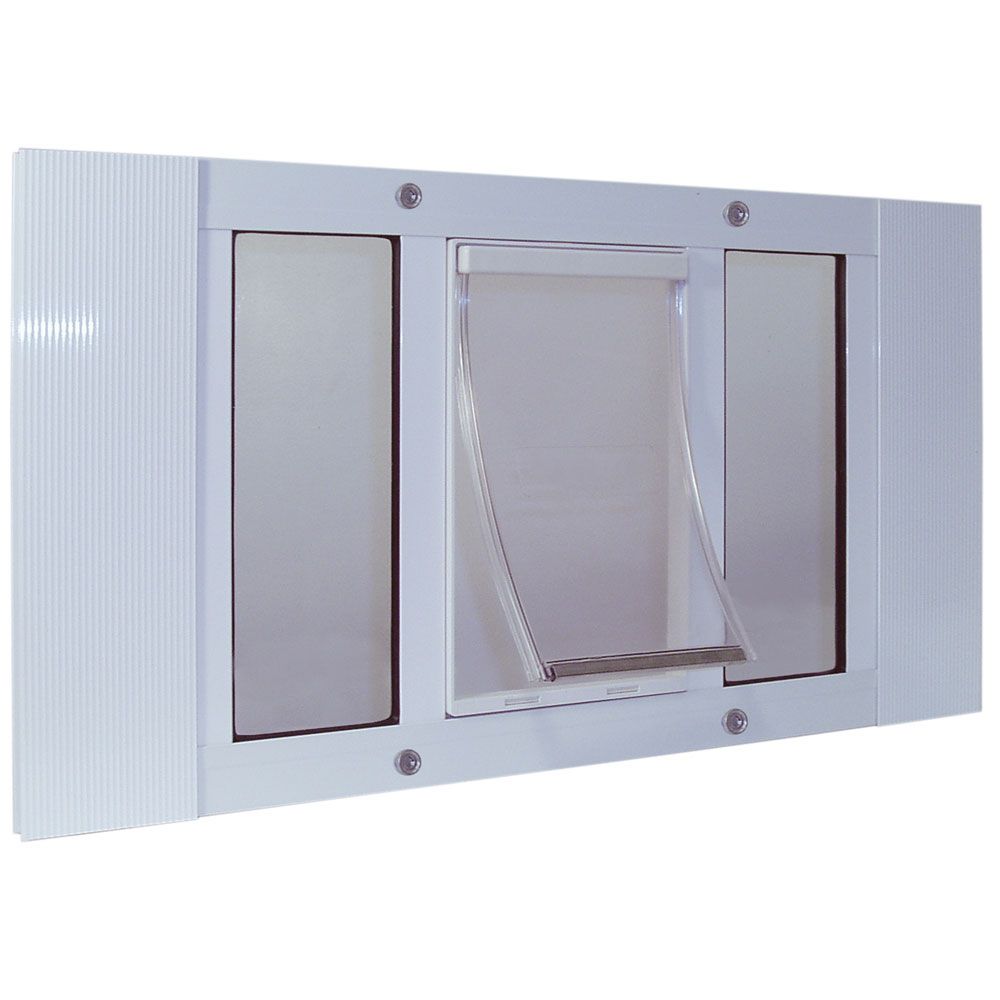

Ideal Pet Aluminum Sash Window Pet Door Medium 33" - 38"

Item: 33SWDM
141.36
Compare to: $183.76

Price too low to show

Add to cart to see low price
You Save: $42.40!(23%)

Notice

All sales are Final. No returns or exchanges.

Description

Ideal Pet Aluminum Sash Window Pet Door is an entry system that you and your pet can rely on. It can be installed quickly into any existing aluminum Sash Window in your home with easy to follow step-by-step instructions. Economical and dependable, the Ideal Pet Sash Window doors require no changes to your existing aluminum Sash Window and can be installed or removed with ease.

Key Features:

  • High quality white finish aluminum construction
  • Installs easily into most styles of aluminum sash windows
  • 3 aluminum sash window sizes available: Adjustable width from: 23" to 28" (23) , 27" to 32" (27) and 33" to 38" (33)
  • Attractive white aluminum frame with a safety glass interior panel
  • Fits into standard aluminum Sash Window

Useful Information

Download Ideal Pet Products Aluminum Sash Window Pet Door Installation Instructions

23" Model
Pet Doors Model# Flap Size Recommended Weight
Cat Flap 23SWDCF 6-¼"x6-¼" 2 to 12 Lbs.
ChubbyKat 23SWDCK 7-½"x10-½" 2 to 25 Lbs.
Small 23SWDS 5"x7" 2 to 12 Lbs.
Medium 23SWDM 7"x11-¼" 13 to 35 Lbs.
27" Model
Pet Doors Model# Flap Size Recommended Weight
Cat Flap 27SWDCF 6-¼"x6-¼" 2 to 12 Lbs.
ChubbyKat 27SWDCK 7-½"x10-½" 2 to 25 Lbs.
Small 27SWDS 5"x7" 2 to 12 Lbs.
Medium 27SWDM 7"x11-¼" 13 to 35 Lbs.
Extra Large 27SWDXL 10-½"x15" 36 to 90 Lbs.
33" Model
Pet Doors Model# Flap Size Recommended Weight
Cat Flap 33SWDCF 6-¼"x6-¼" 2 to 12 Lbs.
ChubbyKat 33SWDCK 7-½"x10-½" 2 to 25 Lbs.
Small 33SWDS 5"x7" 2 to 12 Lbs.
Medium 33SWDM 7"x11-¼" 13 to 35 Lbs.
Extra Large 33SWDXL 10-½"x15" 36 to 90 Lbs.

How to Measure Your Ideal Pet

To determine the correct size door simply measure the width (A) and height (B) of your pet.

(A) Measure the widest point of your pets shoulder

(B) Measure from the top of your pets back (just behind his head) to the bottom of chest.

Aluminum Sash Window Pet Door Installation Instructions

Tools Required for Installation

  • Safety Goggles
  • Tape Measure
  • Scissors
  1. Raise your sliding sash window frame to its fully open position and place the pet door assembly between the window sill and the open sash window frame.
  2. Turn the silver knobs counter-clockwise to release the end spacers. Pet door assembly should now fit the window snugly on both ends.
  3. Turn silver knobs clockwise to tighten and lock the end spacers in position.
  4. To install the Foam Bumper Seal, measure the top of the installed Aluminum Sash Window Pet Door, unroll and cut Foam Bumper Seal to this measurement. Peel off the protective backing and attach along top edge of the pet door, pressing firmly as you go. Lower the sliding sash window frame until it touches onto the Foam Bumper Seal.
  5. To install the Vinyl Draft-Seal, measure the top of the sliding sash window frame, from left edge of the latch to the outside edge of the frame. Cut the Vinyl Draft-Seal to this measurement. Peel off the protective backing and attach along the top edge of the sliding sash window frame, making sure inside flexible edge touches the glass opposite the sliding sash window frame. Repeat this step for the right side.

If the bottom silver knobs interfere with bottom sill, you may remove them as follows:

  1. Take out 2 screws that hold the adjustable end extrusions.
  2. Push steel rods into long bottom extrusion about 1/8" below surface. Locking knob and pin will then pull out.
  3. Re-assemble adjustable end extrusions.

Note: Leave top knob in place to lock your pet door in position.
